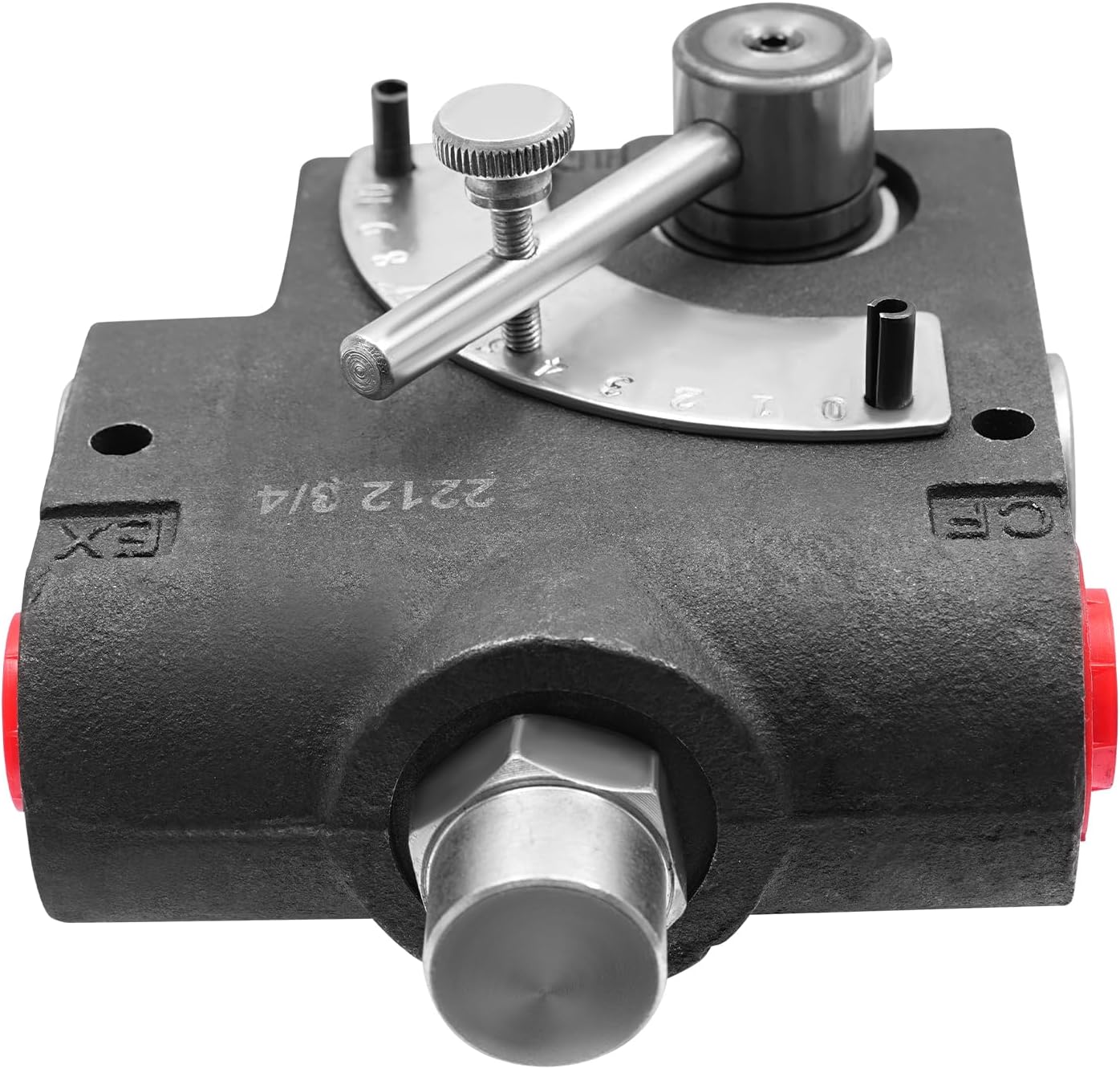

3/4 NPT Hydraulic Flow Control Valve, Adjustable Variable Directional Control Valve with Relief, 30GPM, Max 30.4Gal/Min, 500-3000 PSI Pressure Relief Hydraulic Acting Valve

DescriptionAn exquisite hydraulic adjustable variable flow control valve, meticulously crafted to epitomize the harmonious fusion of precision engineering and fluid dynamics. This valve, with its sophisticated adjustability, stands as a testament to the pinnacle of technological refinement in regulating fluid flow dynamics with unparalleled professionalism and finesse.PortsIN: Inlet PortCF (Controlled Flow): Flow coming from this port is pressure compensated and proportional. Flow can vary from closed to fully open depending on the position of the lever.EX (Excess Flow): Flow coming from this port is pressure compensated. If the lever is set to 0 all flow will exit the valve from this port.SpecificationMaterial: Vermicular Graphite Cast IronSurface Treatment: PhosphatingColor: BlackModel: LKF-114Assembly Required: NoMaximum Flow Rate: 115L/30.38Gal/min Flow Control Range: 0.5-100 L/0.132-26.42Gal/minSafety Valve Setting Range: 50 - 210 BarPressure Relief Valve Adjustment Range: 500 - 3000 PSIApplicable Fluid Temperature: -15~80°C/5~176°F Adjustable Flow Rate: 0-30 GPMPort Size: 3/4" NPTMaximum Working Pressure: 3000 PSI Product Size: 11.5*4.8*14.7cm/4.53*1.89*5.79 inGross Weight: 3.9kg/8.6lbsPackage Size: 16*14*10.5cm/6.3*5.51*4.13inPackage Included1* Hydraulic Adjustable Variable Flow Control ValveNotes Please note that the EX Port must be plumbed back into the tank for the relief valve to operate.

• Excellent Performance: The hydraulic flow control valve can adjust the flow rate from 0-30 GPM to optimize system efficiency. Once set, it will maintain a constant speed even with variations of loads. The excess flow will be returned to the tank or used to power another function.
• Practical Assistant: With this variable directional control valve, you can prevent system overload and reduce energy consumption by limiting the maximum flow rate as well as precisely controlling the flow rate, helping improve overall energy efficiency.
• Convenient to Use: Once you receive our flow control valve, you can install it directly into the tractors without additional assembly, which is very convenient and time-saving. Additionally, the pressure can be increased or decreased by 300 PSI by turning the set screw one turn.
• Easy to Clean: This hydraulic acting valve is made of high-quality vermicular graphite cast iron with a phosphating process, which is durable and lightweight, and not easy to rust and corrode, also easy to clean.

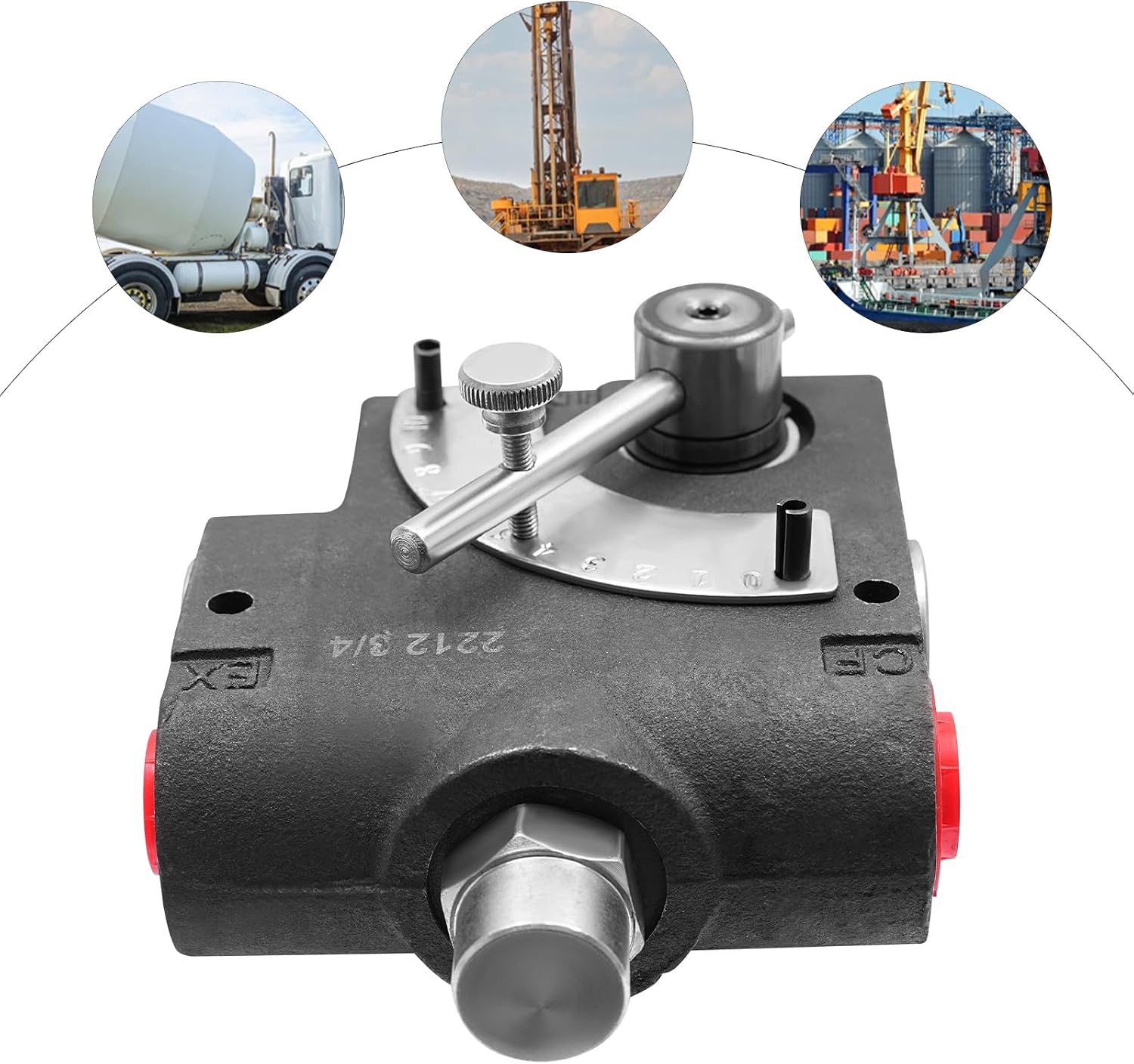

• Compatible with: The pressure relief valve is suitable for small tractors, tractor loaders, log splitters, environment vehicles, light-loading machines, and so on. It is used to stop or start a hydraulic motor or cylinder.
